ESP32-S3 1.8inch AMOLED Touch Screen Development Board, 368x448 Pixels, Dual-Core Processor, Onboard Audio Codec, Support Offline Speech Recognition and AI Speech Interaction, for Smart Devices
4.4 (33 items)
Limited Time SaleUS$21.31 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209090897 | Release Date | 2026/03/29 | List Price | US$14.20 | Model Number | 209090897 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ESP32-S3R8 Processor--- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue--tooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
- AMOLED Touch Screen--- Onboard 1.8inch AMOLED display for clear color picture display, 368 x 448 resolution, 16.7M color, 178° wide viewing angle. Compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.
- Onboard Audio Codec---Supports high-quality audio processing, providing clear and high-quality audio input and output. Supports Offline Speech recognition and AI Speech Interaction---Allows access to online large model platforms to support more AI application scenarios.
- For Various Smart Devices---Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing ba|tte|ry inside the case for independent operation. （Note: this version doesn't include ba|tte|ry ） Dedicated Black Case---with removable back cover for easy embedded into the projects and DIY design.
- Sensor and Chip---Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources.
- Rich Interfaces---Type-C connector, easier to use. Reserved pads of 7 x GPIO, 1 x I2C, 1 x UART, and 1 x USB interface, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design. Onboard 3.7V MX1.25 Lithium ba|tte|ry recharge/discharge header, optional for 3.7V Lithium ba|tte|ry.
- PCF85063 R-T-C Chip---Onboard PCF85063 R-T-C chip, powered by main Lithium ba|tte|ry through AXP2101 chip, with reserved R-T-C ba|tte|ry pads for connecting a backup ba|tte|ry, ensuring R-T-C function during the replacement of the main ba|tte|ry. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, ba|tte|ry charging, ba|tte|ry management, and ba|tte|ry life optimization, etc.
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/isf3c
| Brand | Wonrabai |
|---|---|
| Manufacturer | Wonrabai |
| Model Number | ESP32-S3-Touch-AMOLED-1.8-EN |

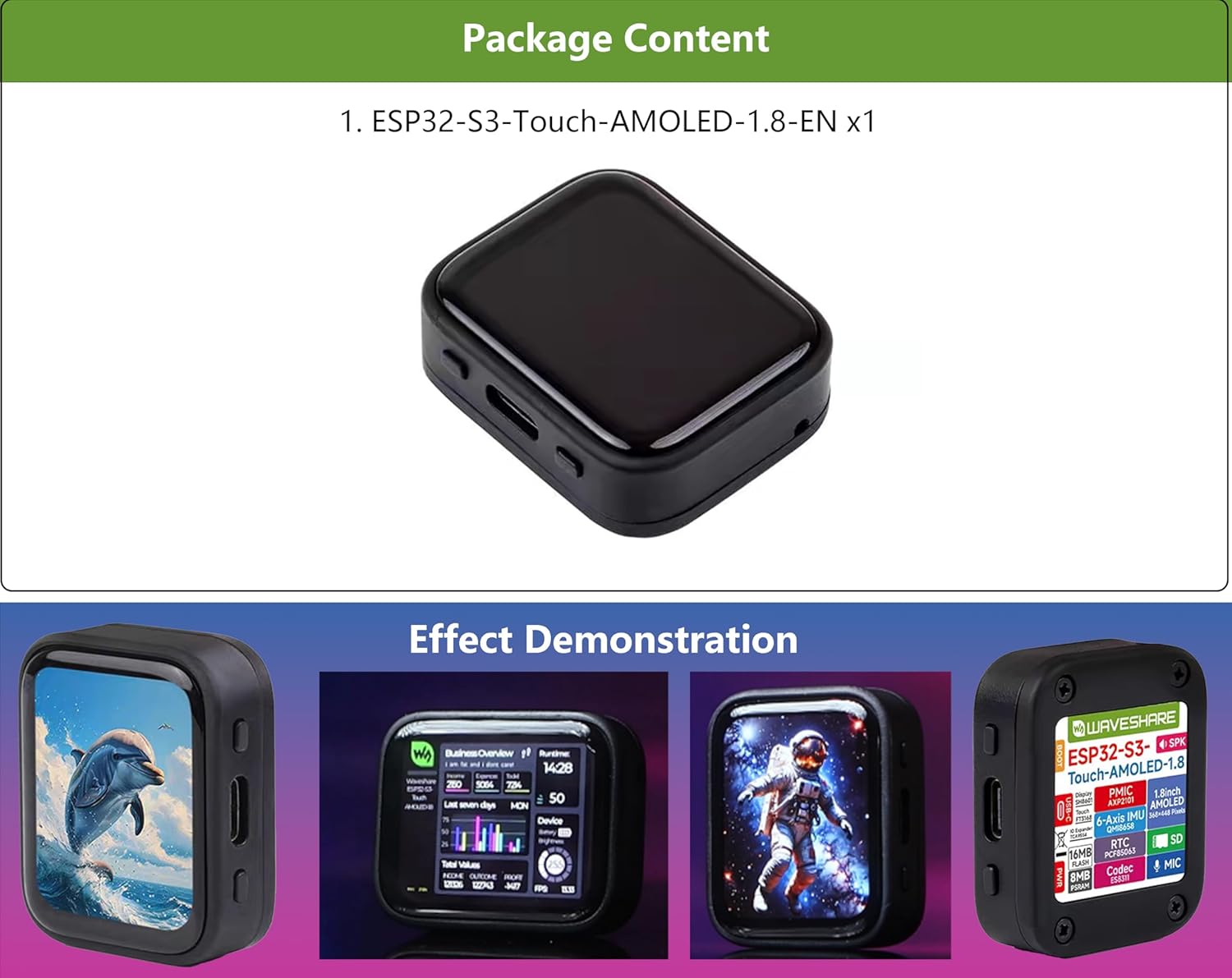

| BuiltIn Media | ESP32-S3-Touch-AMOLED-1.8-ENx1 |
| Processor Count | 2 |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Warranty Description | Any questions, please let us know. |
| Memory Storage Capacity | 24 MB |
